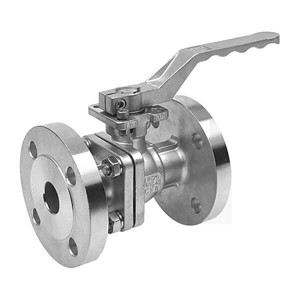

2 Iberibe valvụ bọọlụ flanged

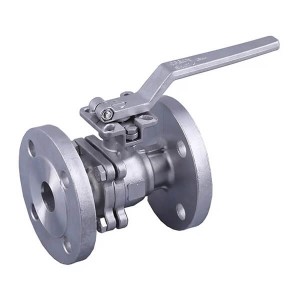

2 pcs flange bọl valvụ
Ọrụ igodo: sere n'elu, flange, bọọlụ, valvụ, rf, ff, 150lb, 300lb, 304,316,304l, 316l
Oke ngwaahịa:
Nha: DN15-DN200 (1/2"-8")
Oke nrụgide: DIN PN16-40 / ANSI 150Lb 300Lb / JIS 10K
Okpomọkụ: -20℃ ~ 200℃ (-4℉ ~ 392℉)
Nhọrọ eriri: BSPP / BSPT / NPT / DIN 2999 - 259 / ISO 228 - 1.
Akụrụngwa:
WCB, 304/CF8, 316/CF8M, 304L/CF3, 304L/CF3M, Duplex igwe anaghị agba nchara.
Ọkọlọtọ
| Imepụta & rụpụta | ANSI B16.34;BS5351;DIN3337 |
| Ihu na ihu | ANSI B16.10;DIN3202 F1,F4/F5;GB/T 12221;JIS B2002 |
| Nkwụsị Njikọ | ANSI B16.5;DIN 2632/2633&DIN 2634/2635;JB/T 79;JIS B2212 |
| Socket Weld kwụsịrị na ASME B16.11 | |
| - Butt Weld kwụsịrị na ASME B16.25 | |
| - Akwụsị na ANSI/ASME B1.20.1 | |
| Nwale & nyocha | MSS SP-100; EN 12266; API 598; ISO 5208 |
| Nchekwa ọkụ imewe | API 6FA, API 607 |
| Dịkwa kwa | NACE MR-0175, NACE MR-0103, ISO 15848 |
| Ndị ọzọ | PMI, UT, RT, PT, MT |
Atụmatụ imewe:
1.ISO 5211 kwụ ọtọ n'elu ikpo okwu
2.Anti-static ngwaọrụ
3.Anti-stem imewe nke valvụ stem
4.Silica Sol itinye ego nkedo usoro
5.Steel bọọlụ nwere oghere itule nrụgide
6.Full ọdụ ụgbọ mmiri
7.Locking ngwaọrụ dị

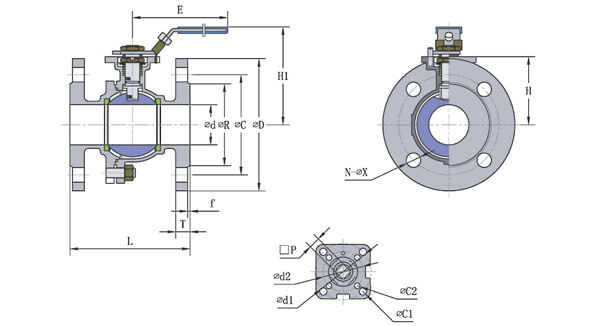

2PCS flange bọọlụ valvụ Structure
Ọ bụrụ na ịchọrọ nkọwa ndị ọzọ gbasara valves biko kpọtụrụ NSW(newsway valve) ngalaba ahịa
Newsway Valves Materials
Enwere ike ịnye valvụ NSW na ihe mkpụbelata n'ụdị akpara akpa na ụdị nkedo. Na-esote igwe anaghị agba nchara na carbon ígwè, anyị na-arụpụta valves na ihe pụrụ iche dị ka titanium, nickel alloys, HASTELLOY® *, INCOLOY®, MONEL®, Alloy 20, super-duplex, corrosion resistant alloys na urea ọkwa ihe.
Ngwa ndị dị
| Aha ahia | UNS nr. | Ụlọ ọrụ nr. | Na-akpụ akpụ | Nkedo |
| Carbon ígwè | K30504 | 1.0402 | A105 | A216 WCB |
| Carbon ígwè | 1.046 | A105N | ||
| Carbon ígwè dị ala | K03011 | 1.0508 | A350 LF2 | A352 LCB |
| Nchara Mpụtara dị elu | K03014 | A694 F60 | ||
| 3 1/2 nickel ígwè | K32025 | 1.5639 | A350 LF3 | A352 LC3 |
| 5 Chrome, 1/2 Moly | K41545 | 1.7362 | A182 F5 | A217 C5 |
| 1 1/4 Chrome, 1/2 Moly | K11572 | 1,7733 | A182 F11 | A217 WC6 |
| K11597 | 1.7335 | |||
| 2 1/4 Chrome, 1/2 Moly | K21590 | 1.738 | A182 F22 | A217 WC9 |
| 9 Chrome, 1 Moly | K90941 | 1.7386 | A182 F9 | A217 CW6 |
| X 12 Chrome, 091 Moly | K91560 | 1.4903 | A182 F91 | A217 C12 |
| 13 Chrome | S41000 | A182 F6A | A351 CA15 | |
| 17-4PH | S17400 | 1.4542 | A564 630 | |
| 254 SMo | S31254 | 1.4547 | A182 F44 | A351 CK3MCuN |
| 304 | S30400 | 1.4301 | A182 F304 | A351 CF8 |
| 304L | S30403 | 1.4306 | A182 F304L | A351 CF3 |
| 310S | S31008 | 1.4845 | A182 F310S | A351 CK20 |
| 316 | S31600 | 1.4401 | A182 F316 | A351 CF8M |
| S31600 | 1.4436 | |||
| 316L | S31603 | 1.4404 | A182 F316L | A351 CF3M |
| 316 Ti | S31635 | 1.4571 | A182 F316Ti | |
| 317L | S31703 | 1.4438 | A182 F317L | A351CG8M |
| 321 | S32100 | 1.4541 | A182 F321 | |
| 321H | S32109 | 1,4878 | A182 F321H | |
| 347 | S34700 | 1.455 | A182 F347 | A351 CF8C |
| 347H | S34709 | 1.4961 | A182 F347H | |
| 410 | S41000 | 1.4006 | A182 F410 | |
| 904L | N08904 | 1,4539 | A182 F904L | |
| Onye nka 20 | N08020 | 2.466 | B462 N08020 | A351 CN7M |
| Duplex 4462 | S31803 | 1.4462 | A182 F51 | A890 Gr 4A |
| SAF 2507 | S32750 | 1.4469 | A182 F53 | A890 Gr 6A |
| Zerọn 100 | S32760 | 1.4501 | A182 F55 | A351 GR CD3MWCuN |
| Ferralium® 255 | S32550 | 1.4507 | A182 F61 | |
| Nicrofer 5923 hMo | N06059 | 2.4605 | B462 N06059 | |
| Nickel 200 | N02200 | 2.4066 | B564 N02200 | |
| Nickel 201 | N02201 | 2.4068 | B564 N02201 | |
| Monel® 400 | N04400 | 2.436 | B564 N04400 | A494 M35-1 |
| Monel K500 | N05500 | 2,4375 | B865 N05500 | |
| Incoloy® 800 | N08800 | 1,4876 | B564 N08800 | |
| Incoloy® 800H | N08810 | 1.4958 | B564 N08810 | |
| Incoloy® 800HT | N08811 | 1.4959 | B564 N08811 | |
| Incoloy® 825 | N08825 | 2,4858 | B564 N08825 | |
| Inconel® 600 | N06600 | 2.4816 | B564 N06600 | A494 CY40 |
| Inconel® 625 | N06625 | 2,4856 | B564 N06625 | A494 CW 6MC |
| Hastelloy® B2 | N10665 | 2.4617 | B564 N10665 | A494 N 12MV |
| Hastelloy® B3 | N10675 | 2.46 | B564 N10675 | |
| Hastelloy® C22 | N06022 | 2.4602 | B574 N06022 | A494 CX2MW |
| Hastelloy® C276 | N10276 | 2.4819 | B564 N10276 | |
| Hastelloy® C4 | N06455 | 2.461 | B574 N06455 | |
| Titanium GR. 1 | R50250 | 3.7025 | B381F1 | B367C1 |
| Titanium GR. 2 | R50400 | 3.7035 | B381 F2 | B367 C2 |
| Titanium GR. 3 | R50550 | 3.7055 | B381F3 | B367C3 |
| Titanium GR. 5 | R56400 | 3.7165 | B381F5 | B367 C5 |
| Titanium GR. 7 | R52400 | 3.7235 | B381 F7 | B367 C7 |
| Titanium GR. 12 | R53400 | 3.7225 | B381F12 | B367 C12 |
| Zirconium® 702 | R60702 | B493 R60702 | ||
| Zirconium® 705 | R60705 | B493 R60705 |
